Acoustic Louvres for Heating, Ventilation and Air Conditioning Noise Solutions

Sound Planning supplies and installs acoustic louvres for heating, ventilation and air conditioning applications in plantrooms, acoustic enclosures and vents.

Acoustic louvres provide attenuation (noise reduction) whilst maintaining required air flow, please call our engineers to assist in your acoustic louvre design queries.

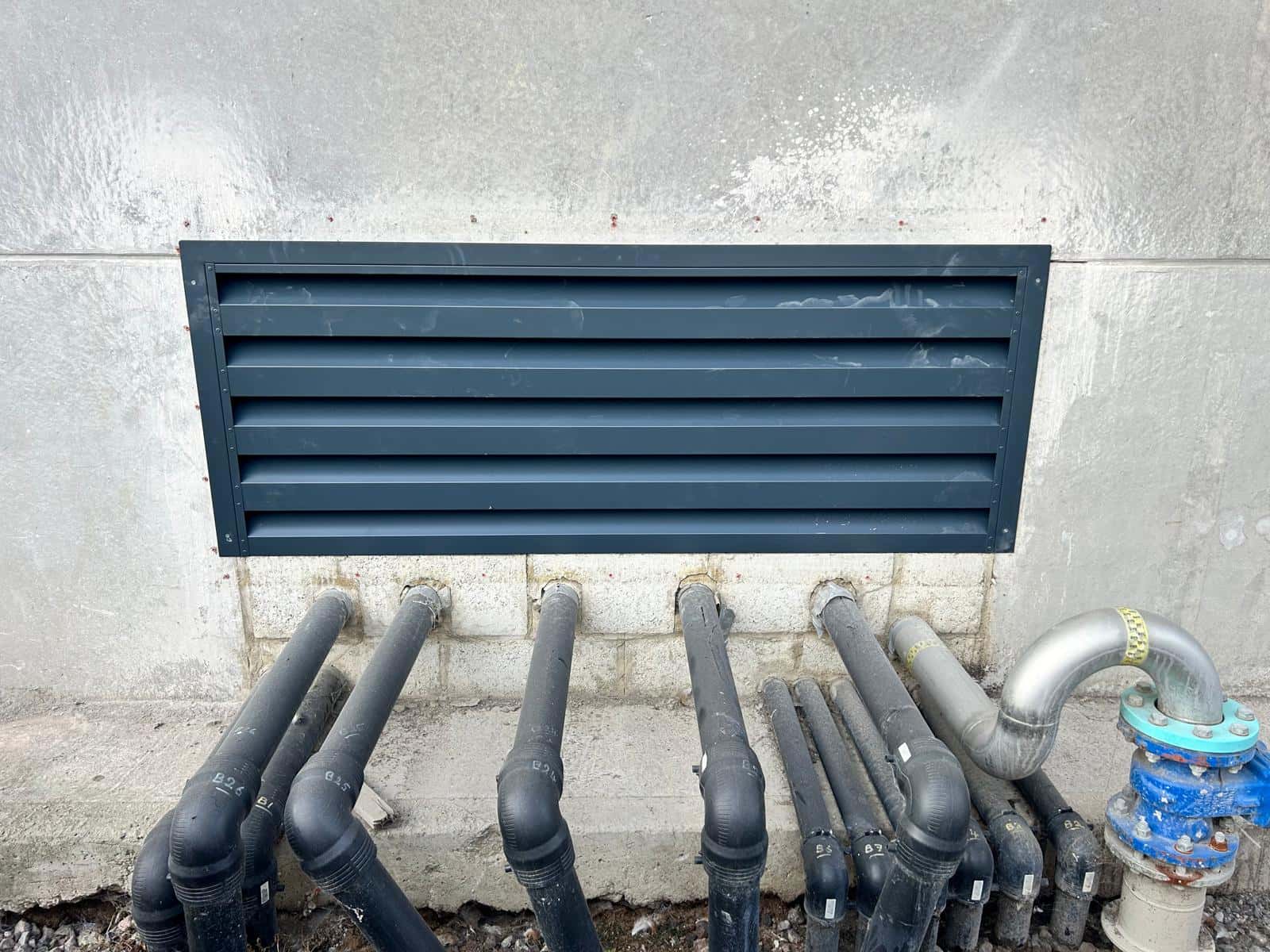

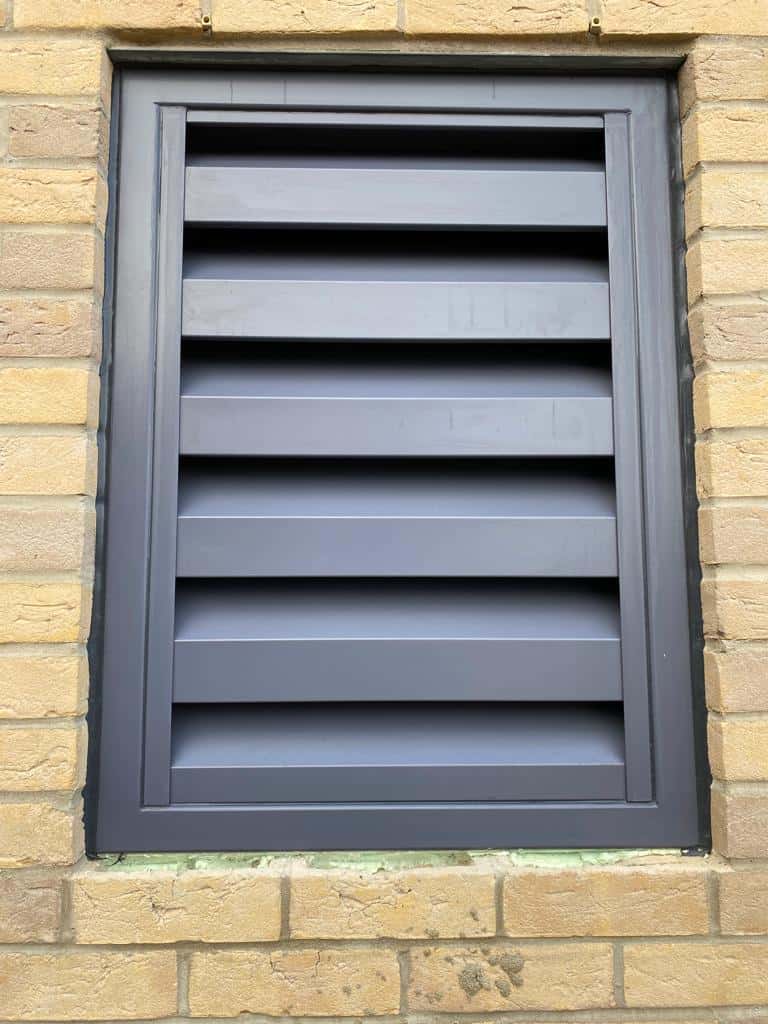

  • Typically used in building openings, they reduce airborne noise while allowing continued airflow
  • They are also used as acoustic screens around mechanical plants where equipment requires airflow

Tested in the laboratory facilities at Salford University, which is accredited by UKAS (United Kingdom Accreditation Service), a Sound Reduction Index (SRI) for each louvre type can be published upon request.

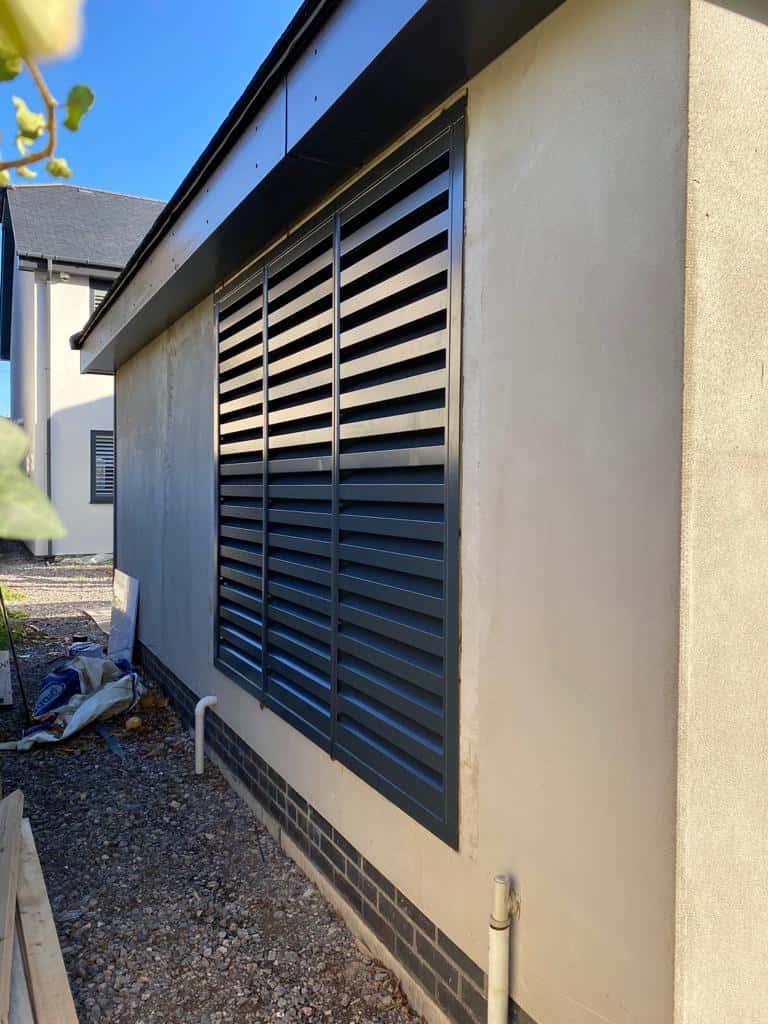

Acoustic Louvre 1

Features

  • Dummy sections, non-acoustic
  • Bird mesh on the rear of the louvre
  • Special fixing details, e.g. external/internal flanges
  • Different construction options:
    • standard units to be installed in building work openings
    • bespoke units to suit a wide range of different requirements
  • Provides good ventilation
  • Gives protection against the weather
  • Acoustic infill materials that help to reduce noise levels

Acoustic louvres can be supplied in five different depths (overall reductions):

  • 150mm (Rw 11dB) NR 17dB
  • 270mm (Rw 12dB) NR 18dB
  • 300mm (Rw 14dB) NR 20dB
  • 300mm (Rw 16dB) NR 22dB
  • 540mm (Rw 22dB) NR 28dB

Acoustic Panels (overall reductions):

  • 50mm (Rw 32dB) NR 38dB
  • 100mm (Rw 34dB) NR 40dB

Units can be supplied in a variety of finishes to suit the application:

  • Pre-finished galvanised sheet steel or aluminium
  • Polyester powder paint (RAL or BS colours)
  • Plastisol
  • Anodised (aluminium only)



Models

The standard acoustic louvre models are classified into two types:

  • Type R
    • Pressure drop: normal
    • Acoustic performance: optimum
  • Type LP
    • Pressure drop: minimum
    • Acoustic performance: normal



Components

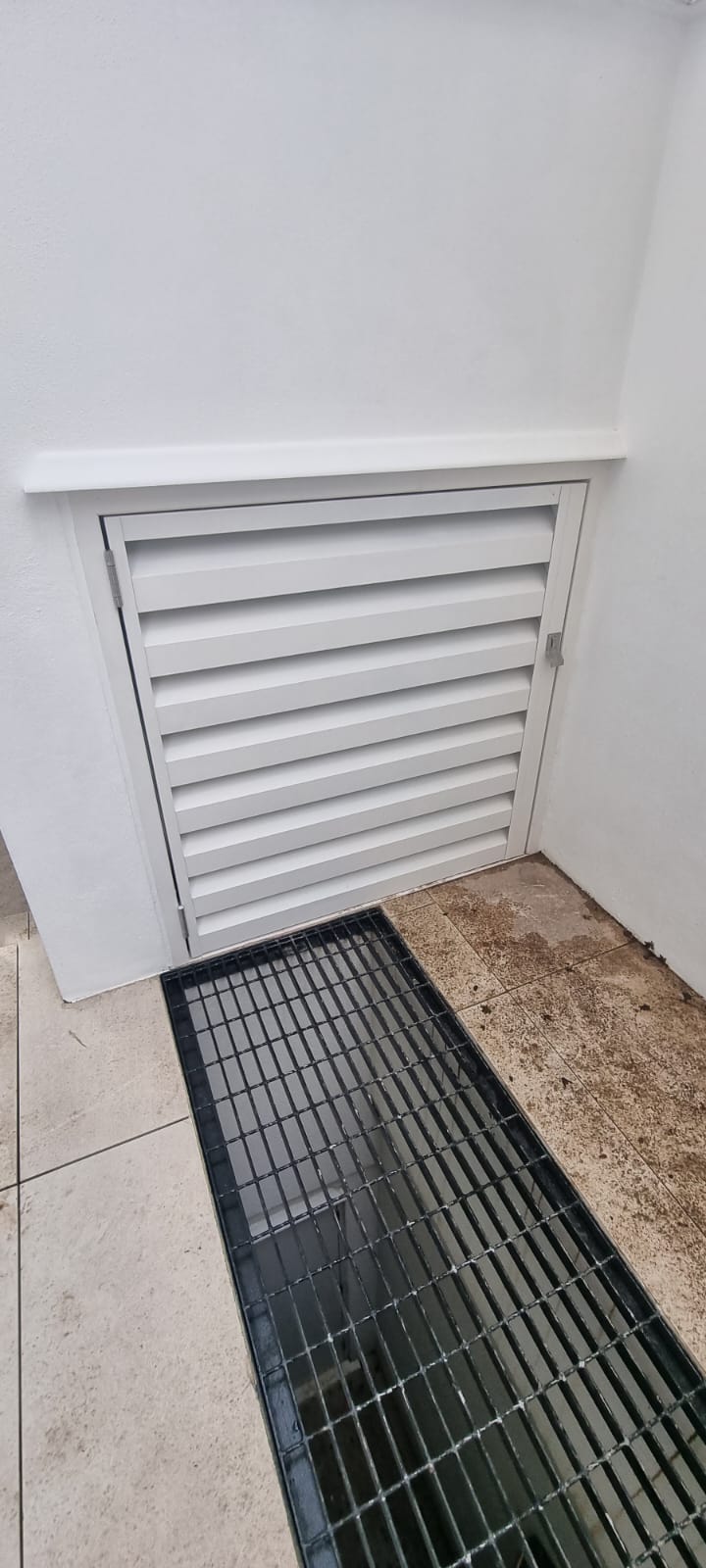

Acoustic Louvre Doors

_wsb_148x191_Louvre+Door+1

Our acoustic louvre door systems provide access to plant rooms, reducing noise levels by 17dB to 22dB. They are supplied with:

  • Lockable hardware
  • 150mm to 300mm depth
  • Box section frame
  • Painted in RAL or BS
  • Hinged on either side
  • Installation services
  • Noise calculation services

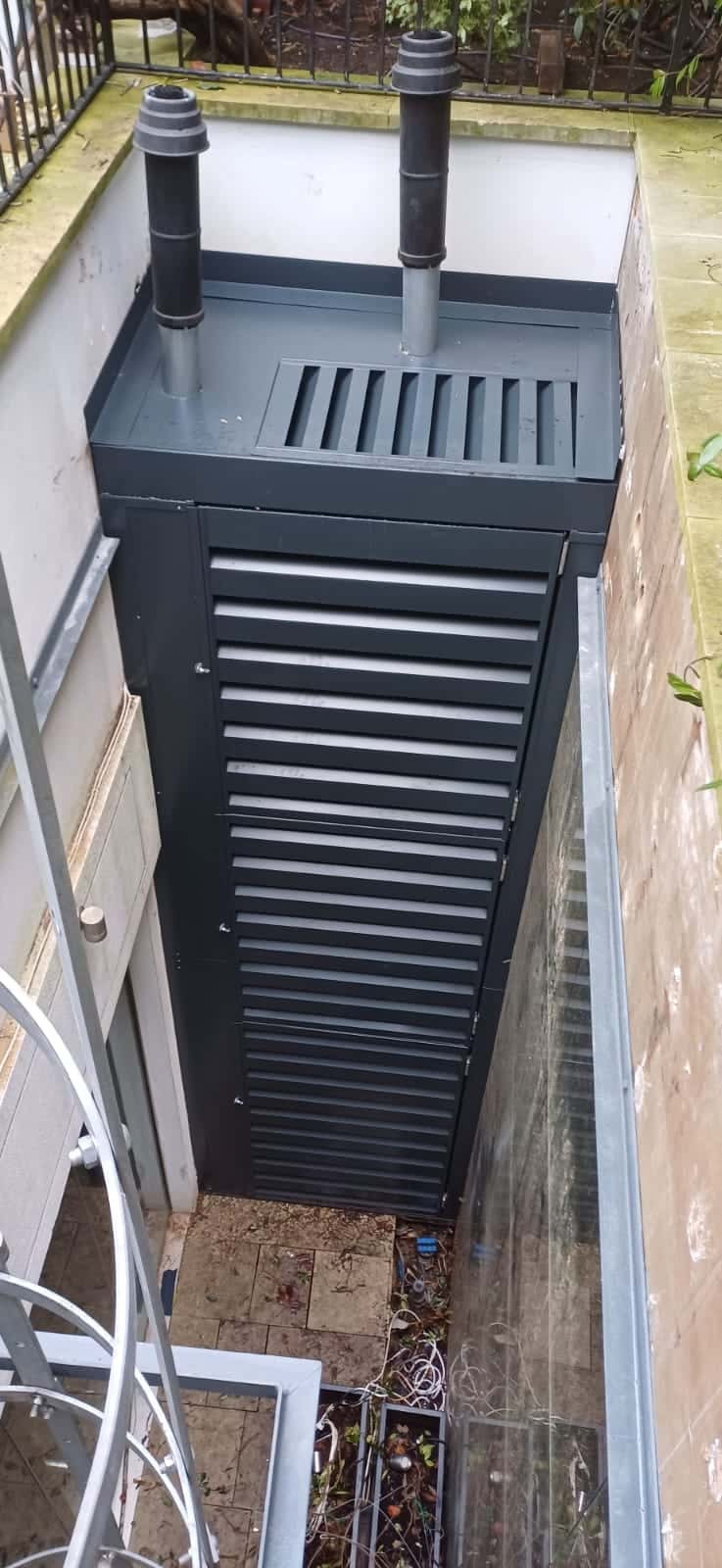

Acoustic Louvre Screens

_wsb_146x200_Acoustic+Louvre+Screen+wth+Access+$28web$29

Acoustic louvre screens reduce noise by creating a different path for the noise source going to the receiver.

  • AC plant screens
  • Generator screens
  • Chiller screens




Special Louvres

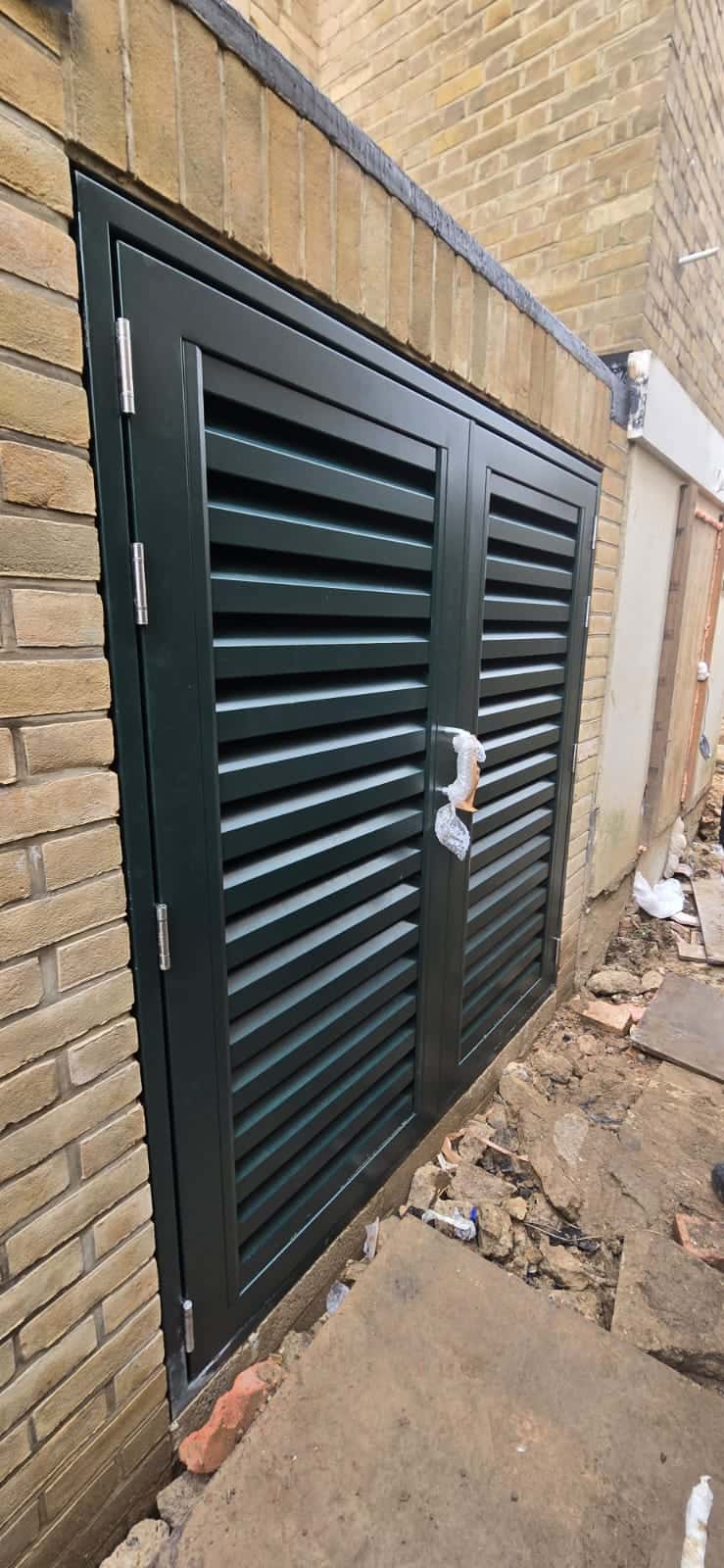

Double Acoustic Louvres Doors and Screen

Double Acoustic Louvres Doors and Screen
  • Central London
  • Bespoke acoustic louvre design layout including double and single doors
  • Polyester powder coated
  • 150mm deep acoustic louvre providing 11 dB(A) sound reduction
  • Supplied and installed by Sound Planning
  • Removable access panels to service AC plant behind

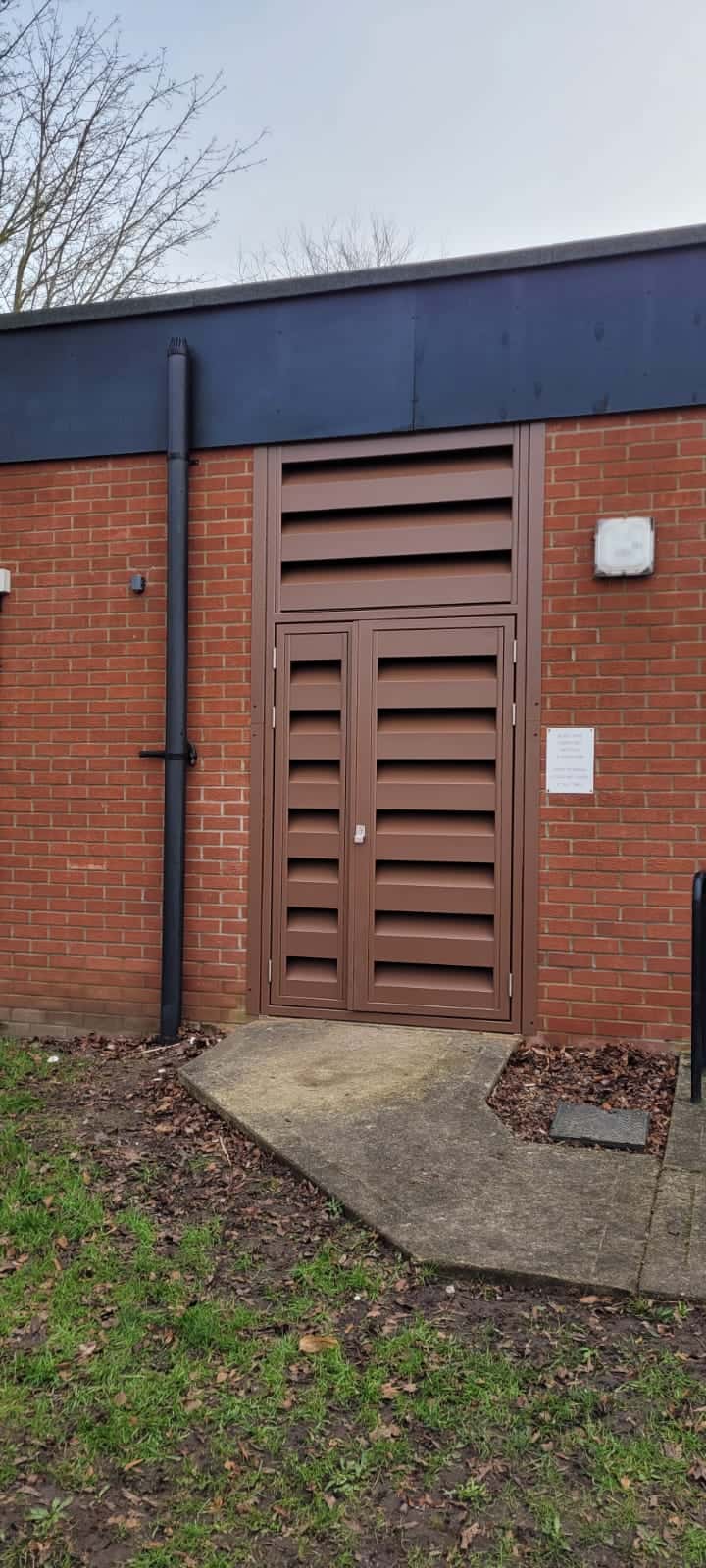

Double Louvre Doors

Double Louvre Doors
  • Enfield
  • Double weather louvre doors with standard louvre above
  • Polyester powder coated to RAL 8004 “Copper Brown”
  • 50mm deep weather louvre
  • Supplied and installed by Sound Planning
  • Lockable door furniture

Old Street – Weather Louvre

Old Street - Weather Louvre
  • Westminster
  • Bespoke shape to fit roof gradient
  • Polyester powder coated to RAL 7011 “Iron Grey”
  • 50mm deep weather louvre
  • Supplied and installed by Sound Planning
  • Removable access panel to service AC plant behind

Roof – Acoustic Louvre

Roof - Acoustic Louvre 2
  • Chelsea
  • Bespoke acoustic louvre to provide attenuated airflow to loft space plant room
  • Polyester powder coated
  • 300mm deep acoustic louvre providing 16 dB(A) sound reduction
  • Chevron design to reduce water ingress into plant room
  • Supplied and installed by Sound Planning
  • Removable access panels to service AC plant behind

Triagulated Weather Louvre and Access Panel

Triagulated Weather Louvre and Access Panel
  • Notting Hill
  • Bespoke shape to fit under external steps
  • Polyester powder coated to RAL 7047 “Telegrey 4”
  • 40mm deep weather louvre
  • Supplied and installed by Sound Planning
  • Removable access panel to service AC plant behind




Other Services

  • Noise reduction calculation services
  • Full installation
  • CAD drawings
